DESC-IDS: Towards an Efficient Real-time Automotive Intrusion Detection System Based on Deep Evolving Stream Clustering

摘要

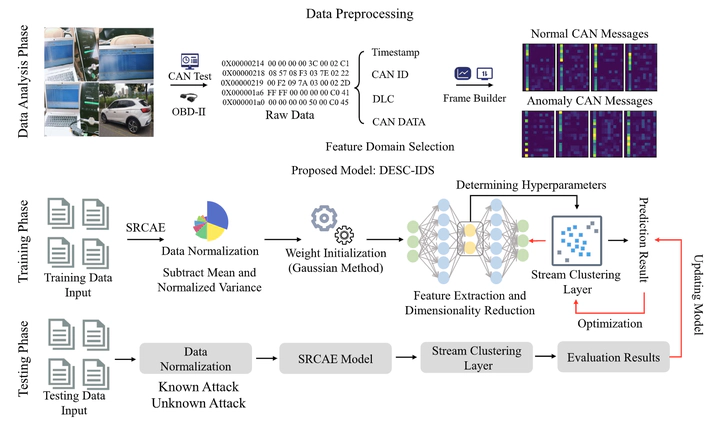

Controller area network (CAN) is a widely used communication protocol for in-vehicle networks. With the up-gradation of traditional vehicle ad-hoc networks (VANETs) to the internet of vehicles (IoV), the connectivity is incremental between the vehicular network and the outside world, making cyber-security become a stringent problem. Although existing machine learning-based methods for automotive intrusion detection are powerful, there are still limitations in detection performance and resistance attack types during the unsupervised learning process that lacks massive amounts of labels. Therefore, this paper proposes an in-vehicle intrusion detection system that incorporates a combination of sparse regularization convolutional auto-encoder (SRCAE) and streams clustering to construct a deep evolving stream clustering model, namely DESC-IDS. Specifically, the method encodes continuous messages as 2-D data frames, which are fed into the SRCAE built by the temporal convolutional network (TCN) to obtain a low-dimensional non-linear spatial–temporal mapping of the high-dimensional data. Thereafter, the stream clustering model can describe a contour baseline of normal communication messages by the spatial–temporal features. Based on this baseline, DESC-IDS can detect any abnormal changes in vehicular communication. In particular, this paper exploits the SRCAE to reconstruct message matrices, which are considered as variants of known attacks due to reconstruction deviation. The extensive evaluation results illustrate that the proposed model provides enough performance and real-time competitiveness in anomaly detection, with 96.44% accuracy on the HCRL intrusion dataset and 98.80% accuracy on the ORNL intrusion dataset. For the mixed attack of fabrication and masquerade, the proposed model achieves stable F1-scores of 93.48% and 86.99%, respectively. Moreover, the performance in unknown attacks is righteous with 98.43% accuracy and 97.15% F1-scores.

类型
出版物
In Future Generation Computer Systems
程彭洲
程彭洲
博士研究生
刘功申
刘功申
教授
